Oil Analysis Sampling Pump - Precise Engine Oil Extraction Tool for Diesel, Gasoline & Hydraulic Fluids | Ideal for Automotive, Marine & Industrial Maintenance

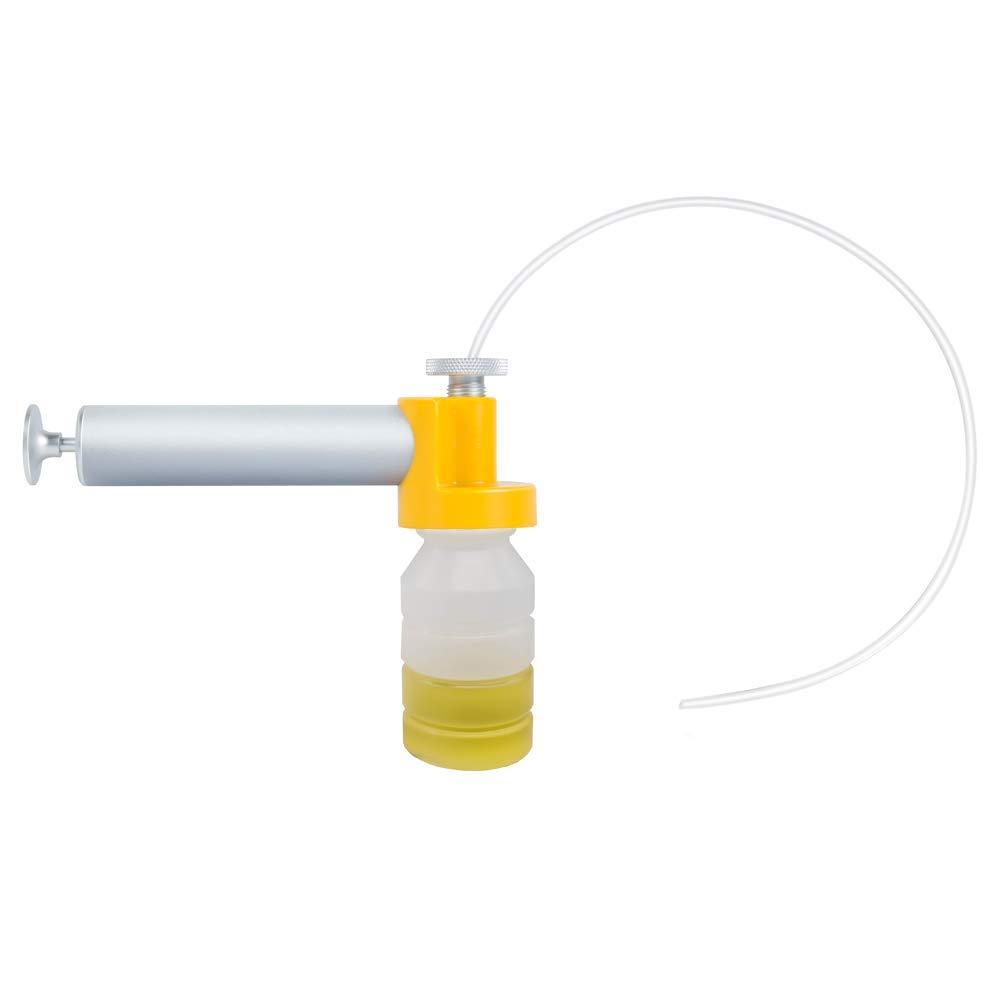

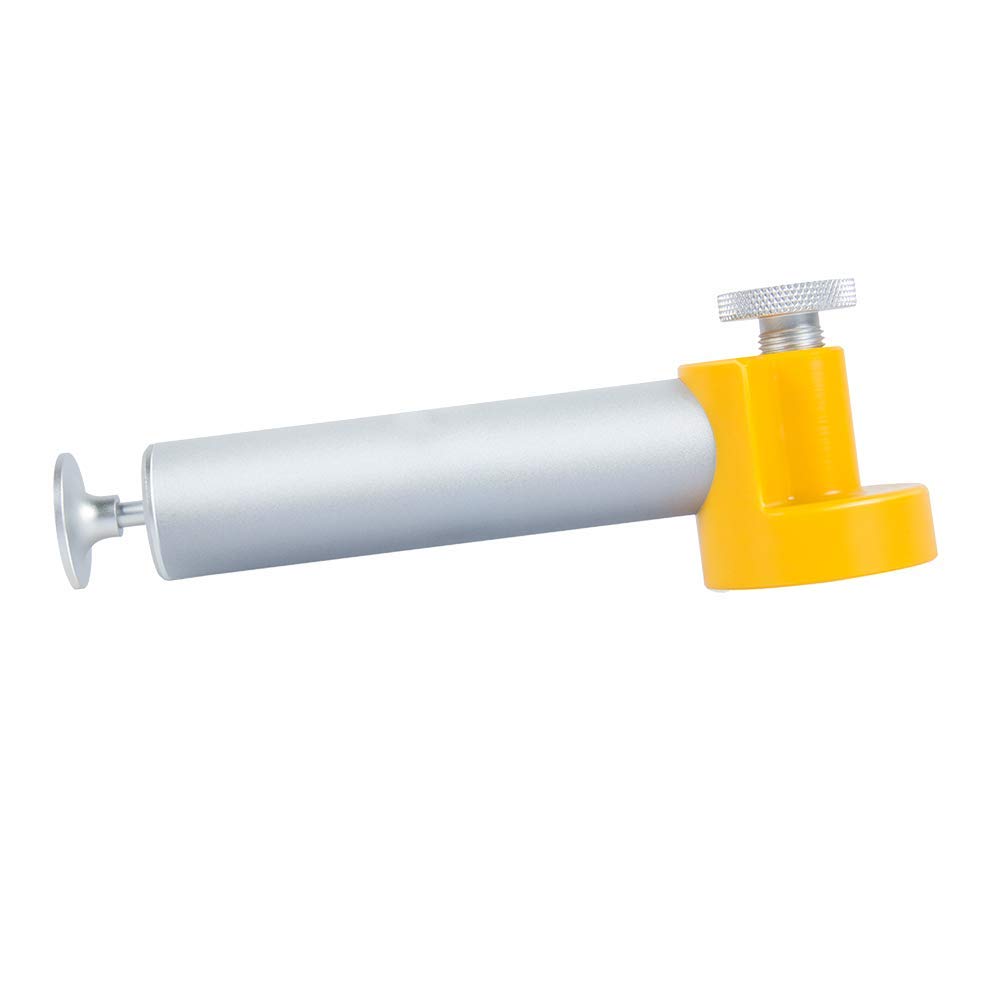

Oil analysis Sampling pump For any mechanical equipment, lubrication system is so essential, which is usually regarded as the “blood” of machine. Lubrication oil taken from machine is similar to blood taken from human body, which contains much information about the condition of the equipment. To take oil sample efficiently and properly, a wonderful oil sampling pump kit is very necessary. oil analysis kit 1. Remove the cover of the sampling bottle and connect with the sampler at its threaded end. 2. Loosen the large silver white screw on the top of the sampler and insert the sampler through the middle hole of the screw until its end aligned with the thread of the bottle (Do not insert too deep as the oil may be pumped into the sampler as the pipe is submerged in the oil.) 3. Tighten the large screw on the top of the Sample Collector 4. Insert the pipe end which is outside into the sample. 5. Pull and push the handle at the end of the sample to pump the oil into the sampling bottle until the liquid level reaches 3/4 of the bottle volume. 6. Remove the sampling bottle, cover it and stick a label on it (The label should contain sampling time, oil sample No., oil sample name, equipment, using time and operator). 7. Pull out the sampling tube and clean the Sample Collector sampling tube sampling tube (without bottle and hose. If you need sampling bottle and tube, please order separately in our shop.） oil analysis sampling pump application It can be equipped with various oil pollution sampling, particle detection sampling, cleanliness analysis sampling, oil monitoring sampling, oil analysis sampling, and conventional sampling oil analysis sampling pump application For any mechanical equipment, lubrication system is so essential, which is usually regarded as the “blood” of machine. Lubrication oil taken from machine is similar to blood taken from human body, which contains much information about the condition of the equipment. To take oil sample efficiently and properly, a wonderful oil sampling pump kit is very necessary. Company

☆Match Bottle and Tubing Size this Oil Analysis Sampler for standard bottle 38mm neck bottles and tubing size 3/16 - 5/16, also suitable for 5-40, 10-40, and 80-140. The sample port works amazing.

☆Multi Applications the sampler can be used for accurate oil analysis, it is widely used for manual oil sampling of hydraulic system, oil cylinder, gearbox, turbine unit, motor, engine, cooler, heater, automobile oil tank, etc.

☆High Efficiency matches with standard oil analysis sampling bottles and tubing, which can effectively prevent the oil from adhering to the oil gun and polluting the oil sample by external impurities. This oil extractor works flawlessly to take oil samples on over hundreds of machines with no cross contamination, speed up the process from the old procedure by 100%.

☆Water and Corrosion Resistance the oil sampler is made of special materials, and it’s surface is galvanized and rustproof. It is resistant to oil, water and erosion, beautiful and durable.

☆Easy to Use Pump works great, Just need to check the O-ring or there won't be sufficient suction to fill the bottle.
